Cooking Equipment · Cooking

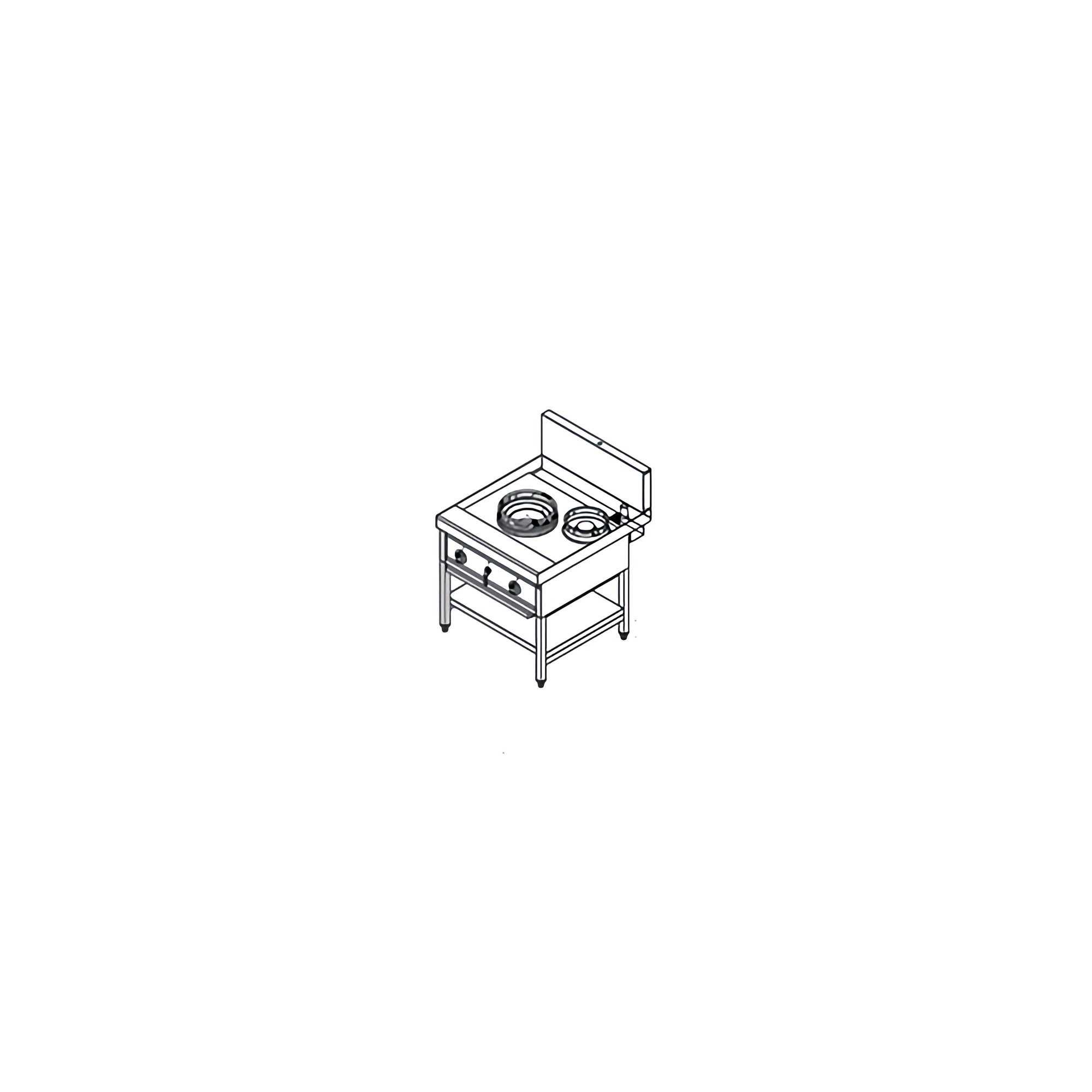

Chinese Wok
ITEM CODE: 720084
Stainless steel structure, Flameout protection, burners and cast iron grids, pilot flame, adjustable feet. Splashback and water: high splashback with shelf,…
Request a QuoteProduct Description
Stainless steel structure, Flameout protection, burners and cast iron grids, pilot flame, adjustable feet. Splashback and water: high splashback with shelf, water swivel arm, and rear waste channel.
Technical Specifications · 720084
- Overall Dimensions
- 650 x 900 x 850 (+280) mm
- Capacity
- 1 wok hole (wok rings 300 & 255 mm)
- Electrical Power
- Not required
- Voltage / Frequency
- Not required
- Gas Heat Input / Consumption
- Gas heat input: 40 kW (136,486 BTU/h) | Natural gas G20: 4.23 m³/h, G25: 4.92 m³/h; LPG G30/G31: 2.73 kg/h
- Cold-Water Inlet
- Required – 1/2" (12.7 mm) cold water (swivel arm)
- Drain Requirement
- Required – 1 1/4" (31.75 mm) waste (rear waste channel)
- Net Weight
- 112 kg
- Origin
- Italy
- Exhaust Requirement
- Required – extraction hood; extract airflow 1,450 m³/h; gas supply interlocked with extract fan
Additional technical information available on request.
At a glance
The Chinese Wok is available in 8 configurations. Configurations vary by configuration (8 options). Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (8)
| Configuration | Ref. |
|---|---|
| 1 wok hole (wok rings 300 mm) · 400 x 600 x 850 (+100) mm · 15 kW gas | 720046 |
| 1 wok hole (wok rings 300 & 255 mm) · 650 x 900 x 850 (+280) mm · 30 kW gas | 720091 |
| 1 wok hole (wok rings 300 & 255 mm) · 650 x 900 x 850 (+280) mm · 40 kW gas | 720084 |
| 2 wok holes (wok rings 300 mm) · 900 x 600 x 850 (+100) mm · 30 kW gas | 720039 |
| 3 wok holes (wok rings 300 & 255 mm) · 1300 x 900 x 850 (+280) mm · 50 kW gas | 720077 |
| 3 wok holes (wok rings 300 mm) · 1500 x 600 x 850 (+100) mm · 45 kW gas | 720022 |
| 3 wok holes (2 main + 1 auxiliary) (wok rings 300 & 255 mm) · 1800 x 900 x 850 (+280) mm · 70 kW gas | 720060 |
| 4 wok holes (wok rings 300 mm) · 2000 x 600 x 850 (+100) mm · 60 kW gas | 720015 |
Buyer questions
- How do I get a quote for the Chinese Wok?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 8 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy (720084)
