Ice Machines · Cube Ice

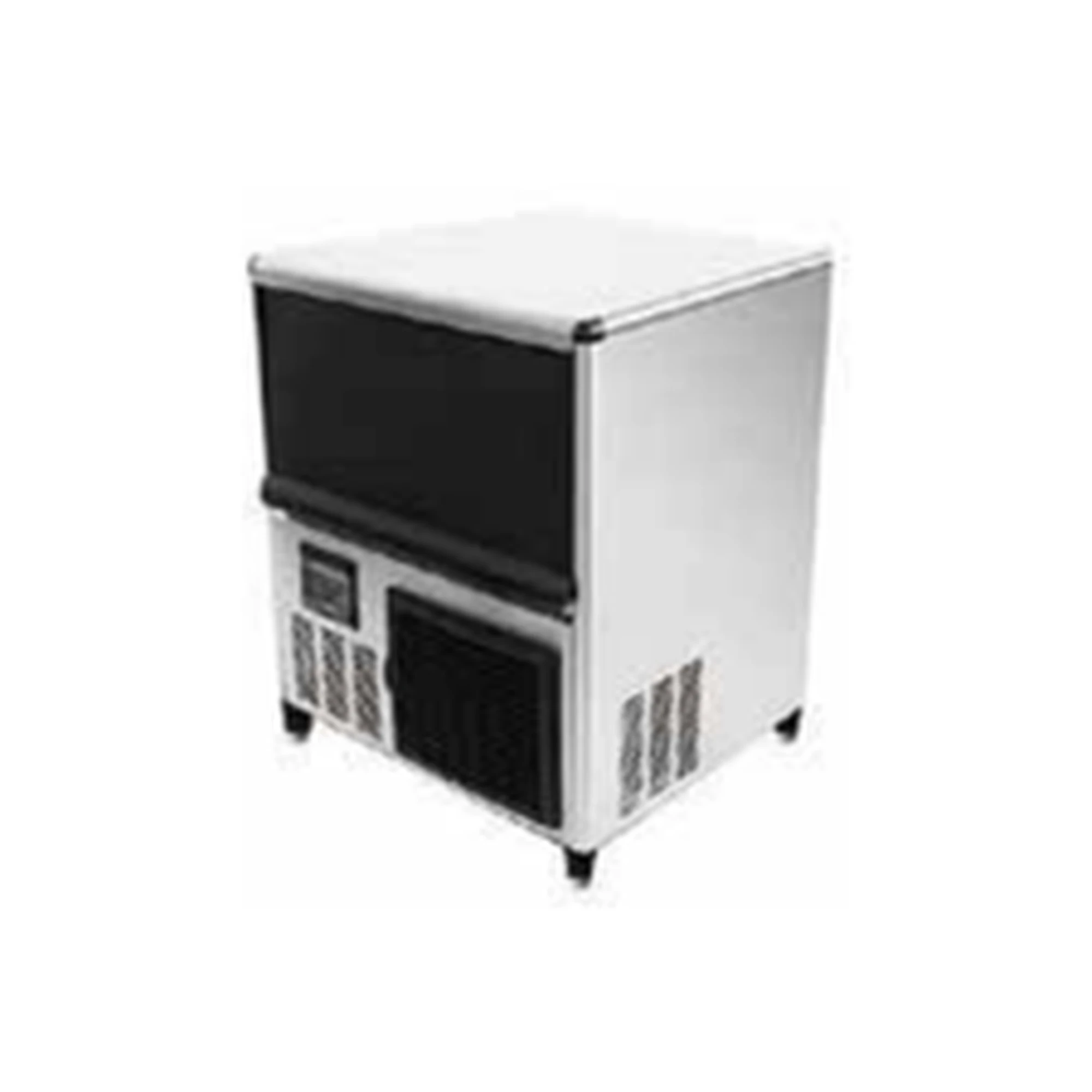

Ice Cube Maker – Undercounter
ITEM CODE: 641617
Easy-access cabinet
Request a QuoteProduct Description
Easy-access cabinet, easy-to-clean ice-making system, simple electromechanical and intelligent system controls
Technical Specifications · 641617
- Overall Dimensions
- 650 x 640 x 785 mm
- Capacity
- 80 kg / 24 h cube ice production; storage bin 25 kg (included); air-cooled (ventilated)
- Electrical Power
- 420 W
- Voltage / Frequency
- 230 V 1N ~ 50 Hz
- Cold-Water Inlet
- Required – 3/4" cold potable water inlet, 1–5 bar
- Drain Requirement
- Required – gravity drain Ø 20 mm min. with air break
- Net Weight
- 55 kg
- Origin
- Italy
- Exhaust Requirement
- Not required (keep condenser air inlet / outlet clear)
Additional technical information available on request.
At a glance
The Ice Cube Maker – Undercounter is available in 3 configurations. Configurations vary by production capacity (50 kg / 24 h, 80 kg / 24 h, 100 kg / 24 h). Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (3)
Buyer questions
- How do I get a quote for the Ice Cube Maker – Undercounter?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 3 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy (641617)
