Product Description
Easy-access cabinet, easy-to-clean ice-making system, simple electromechanical and intelligent system controls
Technical Specifications · 641327
- Overall Dimensions
- 560 x 830 x 1718 mm
- Capacity
- 160 kg / 24 h cube ice production; storage bin 105 kg (included); air-cooled (ventilated)
- Electrical Power
- 1000 W
- Voltage / Frequency
- 230 V 1N ~ 50 Hz
- Cold-Water Inlet
- Required – 3/4" cold potable water inlet, 1–5 bar
- Drain Requirement
- Required – gravity drain Ø 20 mm min. with air break
- Net Weight
- 105 kg
- Origin
- Italy
- Exhaust Requirement
- Not required (keep condenser air inlet / outlet clear)
Additional technical information available on request.
At a glance
The Ice Cube Maker – Standard is available in 22 configurations. Configurations vary by cooling method (Air Cooled, Water Cooled); production capacity (14 options). Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (22)
| Cooling Method | Production Capacity | Ref. |
|---|---|---|
| Air Cooled | 26 kg / 24 h | 641266 |
| Air Cooled | 36 kg / 24 h | 641273 |
| Air Cooled | 55 kg / 24 h | 641280 |
| Air Cooled | 73 kg / 24 h | 641297 |
| Air Cooled | 95 kg / 24 h | 641303 |
| Air Cooled | 127 kg / 24 h | 641310 |
| Air Cooled | 160 kg / 24 h | 641327 |
| Air Cooled | 190 kg / 24 h | 641334 |
| Air Cooled | 225 kg / 24 h | 641341 |
| Air Cooled | 315 kg / 24 h | 641358 |
| Air Cooled | 360 kg / 24 h | 641365 |
| Air Cooled | 455 kg / 24 h | 641372 |
| Air Cooled | 680 kg / 24 h | 641389 |
| Air Cooled | 900 kg / 24 h | 641396 |
| Water Cooled | 160 kg / 24 h | 641402 |
| Water Cooled | 190 kg / 24 h | 641419 |
| Water Cooled | 225 kg / 24 h | 641426 |
| Water Cooled | 315 kg / 24 h | 641433 |
| Water Cooled | 360 kg / 24 h | 641440 |
| Water Cooled | 455 kg / 24 h | 641457 |
| Water Cooled | 680 kg / 24 h | 641464 |
| Water Cooled | 900 kg / 24 h | 641471 |
Buyer questions
- How do I get a quote for the Ice Cube Maker – Standard?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 22 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy (641327)

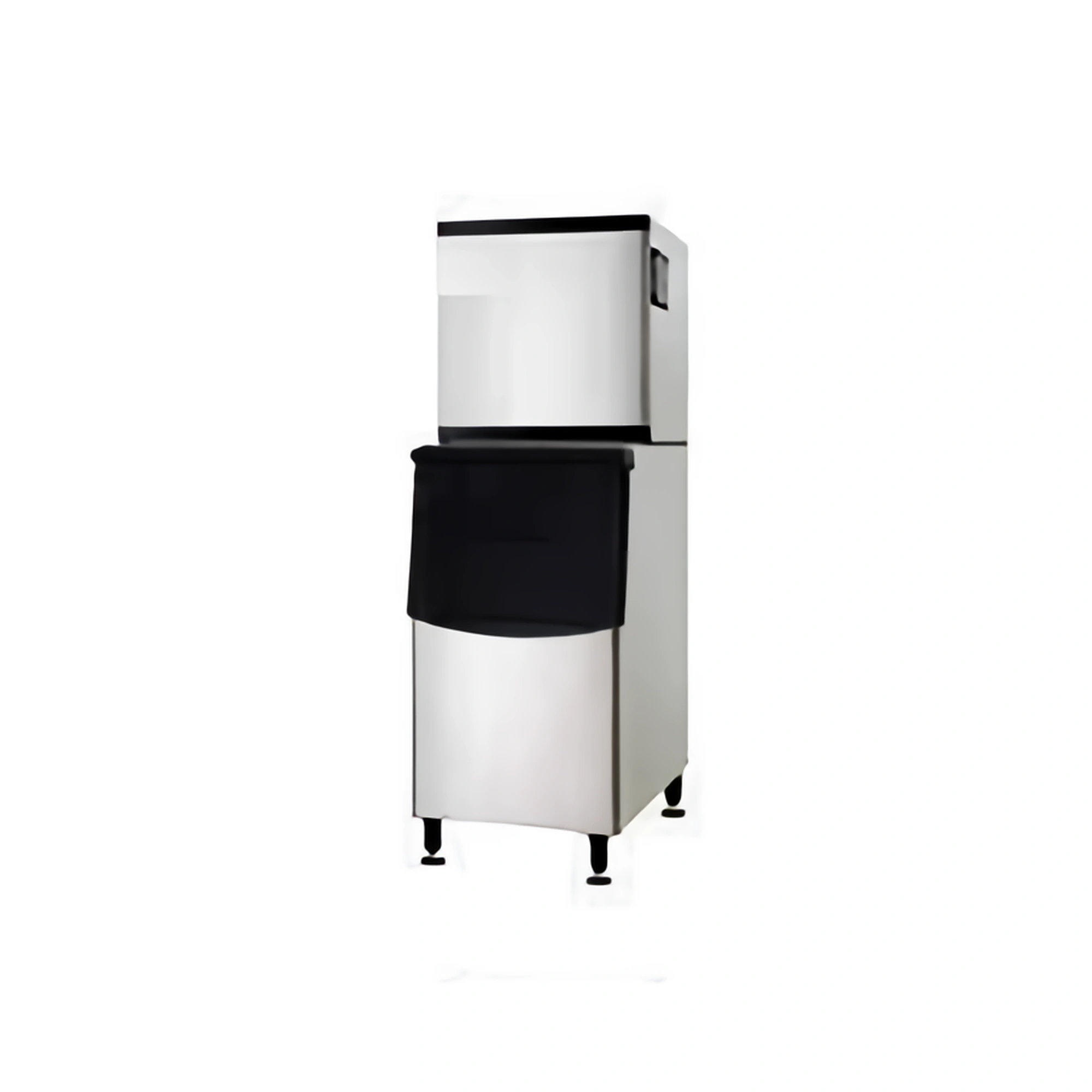

Ice Cube Maker – Standard
641327
