Dishwashing & Water Treatment · Dishwashing Equipment

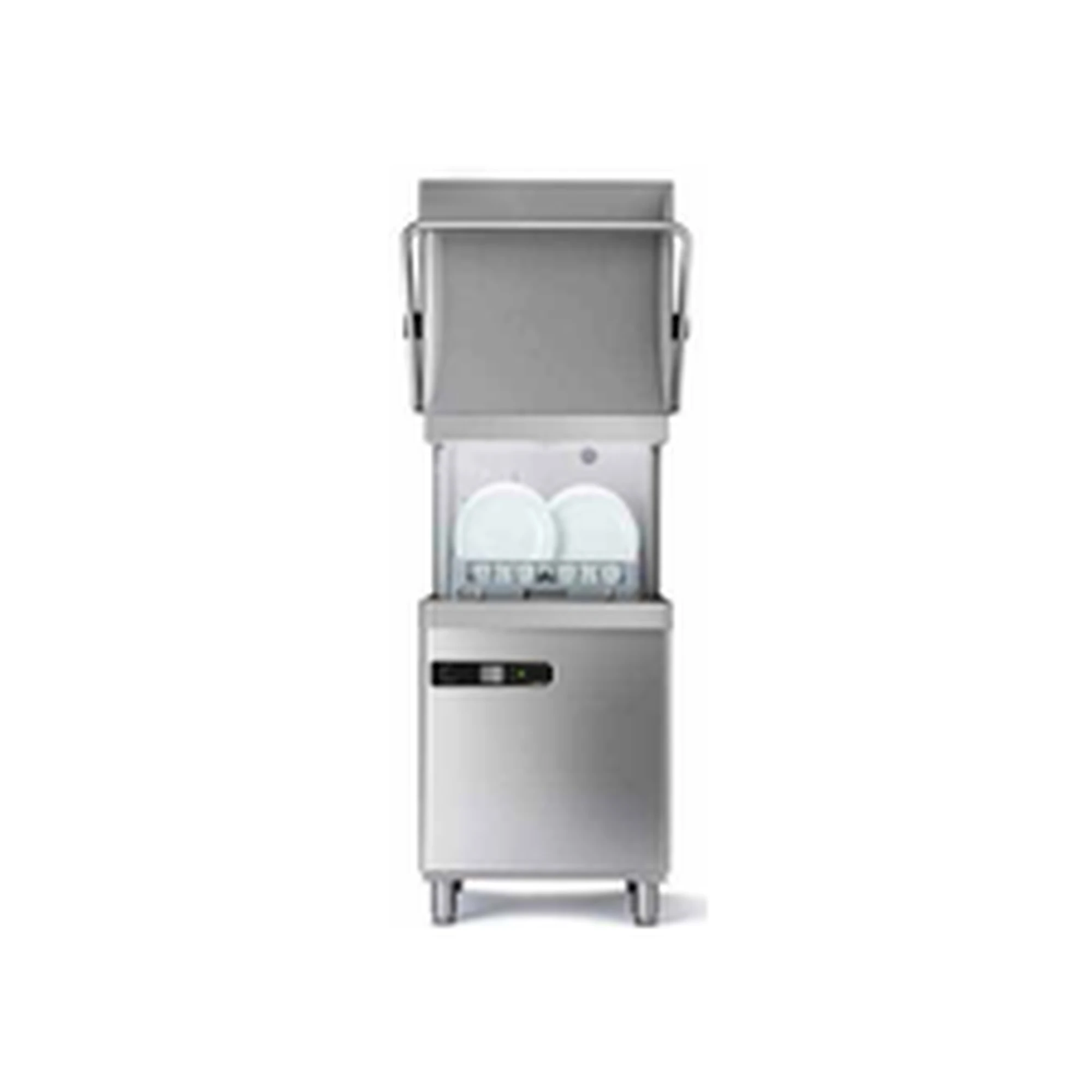

Pass-Through Dishwasher
ITEM CODE: 670310
Basket 500 × 500 mm; usable wash height 405 mm; door height 430 mm; wash tank 30 L
Request a QuoteTechnical Specifications · 670310
- Overall Dimensions
- 655 x 785 x 1500 mm
- Capacity
- Basket 500 × 500 mm; usable wash height 405 mm; door height 430 mm; wash tank 30 L
- Electrical Power
- 7.1 kW
- Voltage / Frequency
- 400 V 3N ~ 50 Hz
- Cold-Water Inlet
- Required – 3/4" water inlet, 2–4 bar (200–400 kPa); softened water recommended
- Drain Requirement
- Required – gravity drain Ø 40 mm to floor gully (drain pump optional)
- Net Weight
- 120 kg
- Accessories
- upper and lower wash arms, break tank and peristaltic rinse-aid dispenser (Evolution series)
- Origin
- Italy
- Exhaust Requirement
- Required – extraction hood over machine; extract airflow 680 m³/h
Additional technical information available on request.
At a glance
The Pass-Through Dishwasher is available in 10 configurations. Configurations vary by series (Profi Series, Digital Series, Extra Series, Evolution Series); basket size (500 × 500 mm, 570 × 620 mm, 2 × 500 × 500 mm); wash height (405 mm, 435 mm); wash tank (20 L, 30 L, 60 L). Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (10)
| Series | Basket Size | Wash Height | Wash Tank | Ref. |
|---|---|---|---|---|
| Profi Series | 500 × 500 mm | 405 mm | 20 L | 670075 |
| Profi Series | 500 × 500 mm | 405 mm | 30 L | 670082 |
| Digital Series | 500 × 500 mm | 405 mm | 20 L | 670181 |
| Digital Series | 500 × 500 mm | 405 mm | 30 L | 670198 |
| Extra Series | 500 × 500 mm | 405 mm | 20 L | 670259 |
| Extra Series | 500 × 500 mm | 405 mm | 30 L | 670266 |
| Evolution Series | 500 × 500 mm | 405 mm | 20 L | 670303 |
| Evolution Series | 500 × 500 mm | 405 mm | 30 L | 670310 |
| Evolution Series | 570 × 620 mm | 435 mm | 30 L | 670327 |
| Evolution Series | 2 × 500 × 500 mm | 405 mm | 60 L | 670334 |
Buyer questions
- How do I get a quote for the Pass-Through Dishwasher?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 10 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy (670310)
