Dishwashing & Water Treatment · Dishwashing Equipment

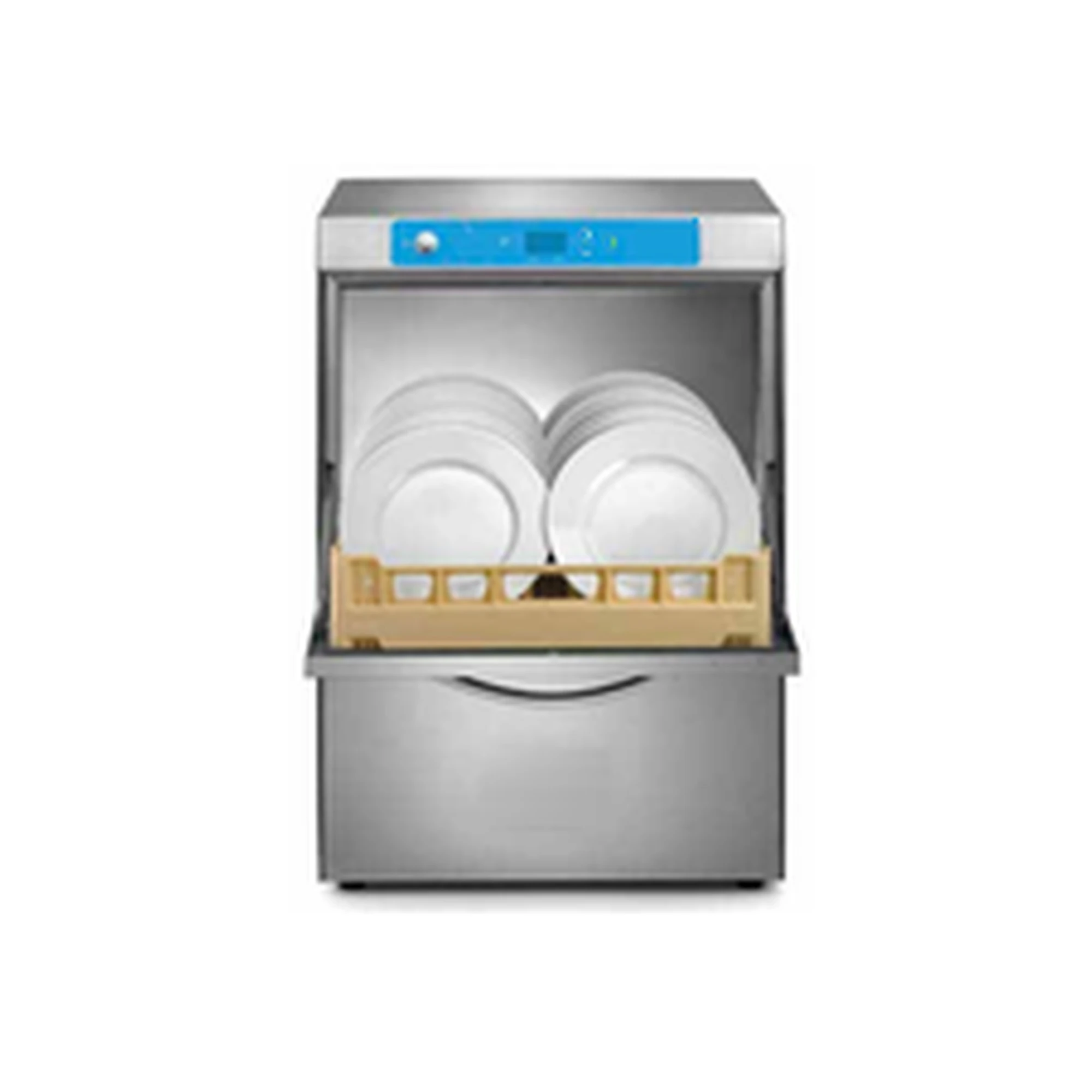

Front-Loading Dishwasher
ITEM CODE: 670235
Basket 500 × 500 mm; usable wash height 320 mm; door height 345 mm; wash tank 23 L
Request a QuoteTechnical Specifications · 670235
- Overall Dimensions
- 582 x 610 x 822 mm
- Capacity
- Basket 500 × 500 mm; usable wash height 320 mm; door height 345 mm; wash tank 23 L
- Electrical Power
- 4.9 kW
- Voltage / Frequency
- 400 V 3N ~ 50 Hz
- Cold-Water Inlet
- Required – 3/4" water inlet, 2–4 bar (200–400 kPa); softened water recommended
- Drain Requirement
- Required – gravity drain hose Ø 24 mm to gully (drain pump optional)
- Net Weight
- 54 kg
- Accessories
- peristaltic rinse-aid dispenser (Extra series)
- Origin
- Italy
- Exhaust Requirement
- Not required (under-counter machine)
Additional technical information available on request.
At a glance
The Front-Loading Dishwasher is available in 8 configurations. Configurations vary by series (Profi Series, Digital Series, Extra Series, Evolution Series); basket size (450 × 450 mm, 500 × 500 mm, 400 × 400 mm); wash height (295 mm, 320 mm, 375 mm, 280 mm). Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (8)
| Series | Basket Size | Wash Height | Ref. |
|---|---|---|---|
| Profi Series | 450 × 450 mm | 295 mm | 670051 |
| Profi Series | 500 × 500 mm | 320 mm | 670068 |
| Digital Series | 450 × 450 mm | 295 mm | 670167 |
| Digital Series | 500 × 500 mm | 320 mm | 670174 |
| Extra Series | 500 × 500 mm | 320 mm | 670235 |
| Extra Series | 500 × 500 mm | 375 mm | 670242 |
| Evolution Series | 450 × 450 mm | 375 mm | 670280 |
| Evolution Series | 400 × 400 mm | 280 mm | 670297 |
Buyer questions
- How do I get a quote for the Front-Loading Dishwasher?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 8 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy (670235)
