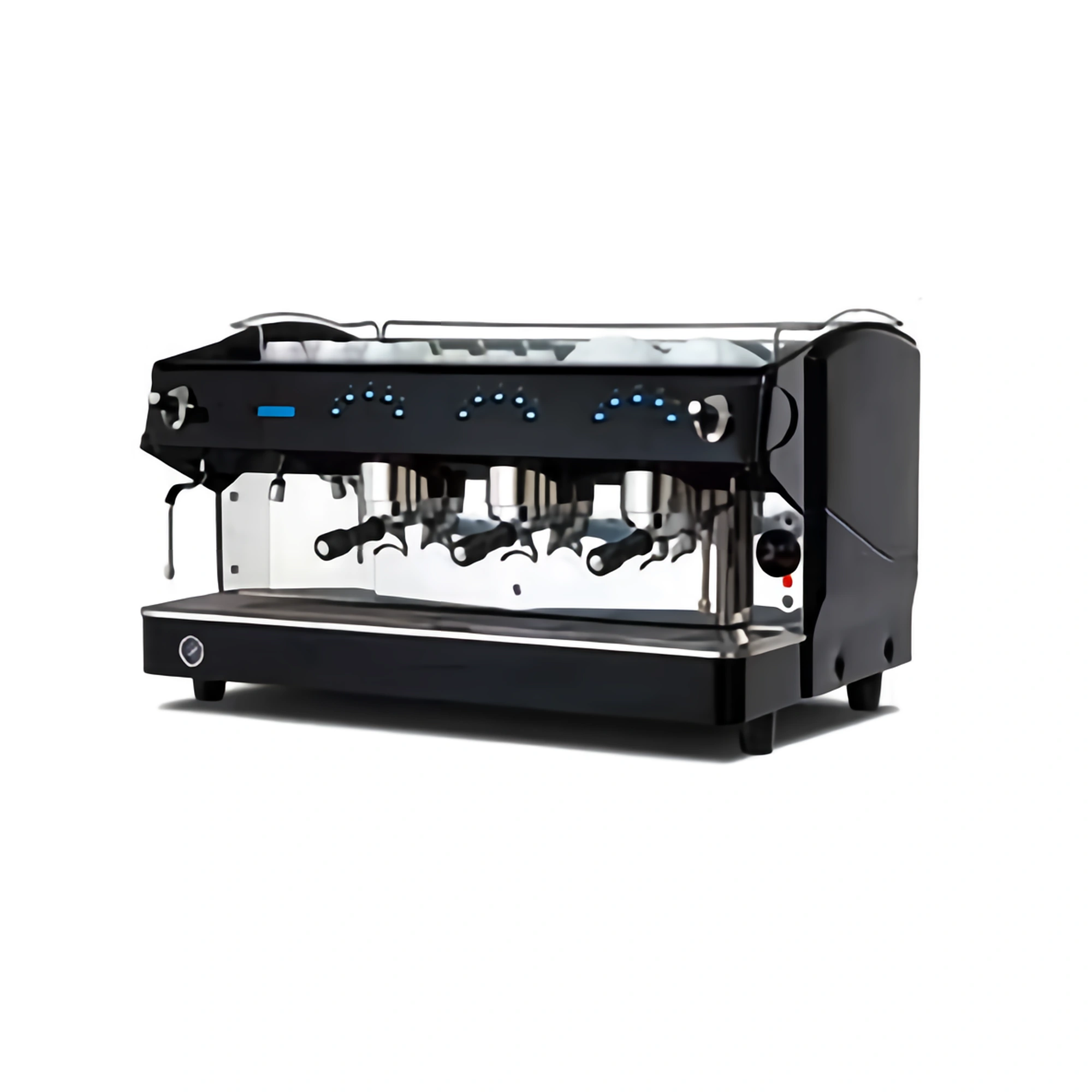

Espresso Machine – Palermo
ITEM CODE: 680166
Automatic (volumetric) coffee and hot-water portion control
Request a QuoteProduct Description
Automatic (volumetric) coffee and hot-water portion control · Low drip tray for take-away cups; thermosiphon water circuit · Group washing programme · Steel body; stainless steel steam and hot-water wands; copper boiler with anti-oxidation treatment · 2 steam wands, 1 hot-water outlet
Technical Specifications · 680166
- Overall Dimensions
- 980 x 550 x 590 mm
- Capacity
- 3 groups; boiler 17.5 L
- Electrical Power
- 4290 W
- Voltage / Frequency
- 230 V 1N ~ 50 Hz or 400 V 3N ~ 50 Hz
- Cold-Water Inlet
- Required – 3/8" cold water inlet, 2–4 bar (200–400 kPa); softened, filtered water
- Drain Requirement
- Required – drain hose Ø 16 mm to gully (gravity)
- Net Weight
- 80 kg
- Origin
- Italy / Spain
- Exhaust Requirement
- Not required
At a glance
The Espresso Machine – Palermo is available in 6 configurations. Configurations vary by configuration (Standard, Compact); groups (1 group, 2 groups, 3 groups); boiler (boiler 6 L, boiler 11.5 L, main boiler 11.5 L + 2 x 1.5 L independent group boilers, boiler 17.5 L, main boiler 17.5 L + 3 x 1.5 L independent group boilers). Country of origin: Italy / Spain.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (6)
| Configuration | Groups | Boiler | Ref. |
|---|---|---|---|
| Standard | 1 group | boiler 6 L | 680128 |
| Compact | 2 groups | boiler 6 L | 680135 |
| Standard | 2 groups | boiler 11.5 L | 680142 |
| Standard | 2 groups | main boiler 11.5 L + 2 x 1.5 L independent group boilers | 680159 |
| Standard | 3 groups | boiler 17.5 L | 680166 |
| Standard | 3 groups | main boiler 17.5 L + 3 x 1.5 L independent group boilers | 680173 |
Buyer questions
- How do I get a quote for the Espresso Machine – Palermo?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 6 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy / Spain (680166)
Espresso Machine – Palermo
680166
