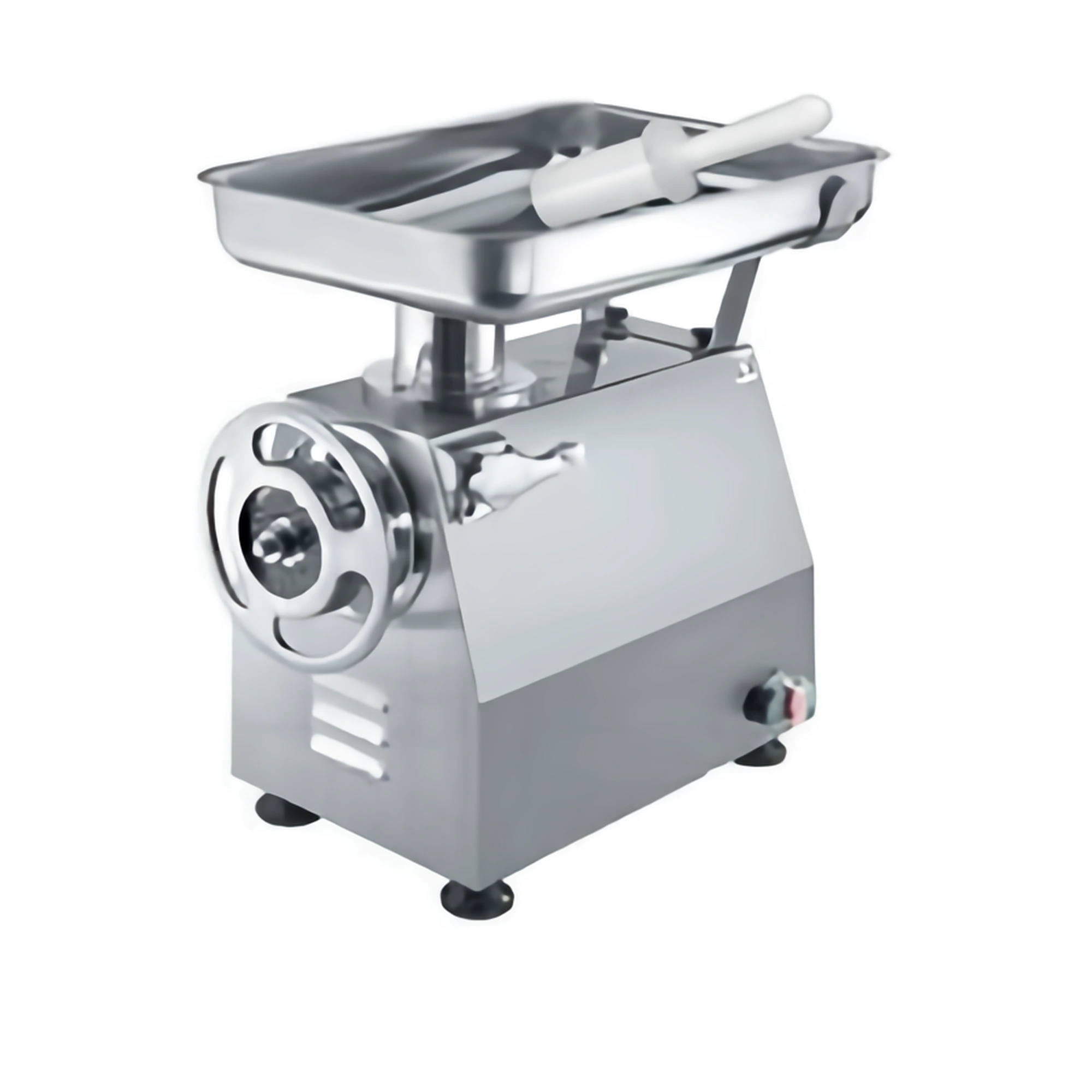

Meat Mincer
ITEM CODE: TC-32 TECO
Stainless steel body; removable mincing head
Request a QuoteProduct Description
Stainless steel body; removable mincing head · Hopper 410 x 320 mm
Technical Specifications · TC-32 TECO
- Overall Dimensions
- 470 x 300 x 450 mm
- Capacity
- Output 600 kg/h; plate Ø 98 mm
- Electrical Power
- 2.2 kW
- Voltage / Frequency
- 400 V 3N ~ 50 Hz
- Cold-Water Inlet
- Not required
- Drain Requirement
- Not required
- Net Weight
- 43 kg
- Origin
- Italy / France / Turkey
- Exhaust Requirement
- Not required
At a glance
The Meat Mincer is available in 9 configurations. Configurations vary by output (Output 120 kg/h, Output 220 kg/h, Output 1200 kg/h, Output 600 kg/h, Output 250 kg/h, Output 300 kg/h); plate / head (—, Plate Ø 130 mm, Size 32 head, Plate Ø 98 mm, Plate Ø 82 mm); construction (Anodised aluminium structure, AISI 304 stainless steel, Stainless steel, Stainless steel body, Stainless steel case, tray and hopper, Cast alloy body plated in AISI 304); power (7 options). Country of origin: Italy / France / Turkey.
Equipping a full kitchen? Request one quote for multiple items →
All configurations (9)
| Output | Plate / head | Construction | Power | Ref. |
|---|---|---|---|---|
| Output 120 kg/h | — | Anodised aluminium structure | 850 W | 620575 |
| Output 220 kg/h | — | Anodised aluminium structure | 1100 W | 620568 |
| Output 1200 kg/h | Plate Ø 130 mm | AISI 304 stainless steel | 5.25 kW | TC-42 |
| Output 600 kg/h | Size 32 head | Stainless steel | 1.7 kW | TC32PMEX |
| Output 600 kg/h | Plate Ø 98 mm | Stainless steel body | 2.2 kW | TC-32 TECO |
| Output 600 kg/h | Plate Ø 98 mm | Stainless steel body | 1.85 kW | TC-32 MECO |
| Output 250 kg/h | Plate Ø 82 mm | Stainless steel case, tray and hopper | 1.1 kW | TC-22P |
| Output 300 kg/h | Plate Ø 82 mm | Cast alloy body plated in AISI 304 | 1.1 kW | TCB22MEX |
| Output 300 kg/h | Plate Ø 82 mm | Stainless steel body | 1.1 kW | TC-22 MECO |
Buyer questions
- How do I get a quote for the Meat Mincer?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- How many configurations are available?
- 9 configurations — compare them in the table above and select the one that fits your kitchen.
- Where is it made?
- Italy / France / Turkey (TC-32 TECO)
