Gas Roasting Pan – Series 900
ITEM CODE: 720268
Cooking tank with manual tilt mechanism, rectangular in shape with radiused corners for ease of cleaning; wide drain outlet Pan bottom: 12 mm thick mild…
Request a QuoteProduct Description

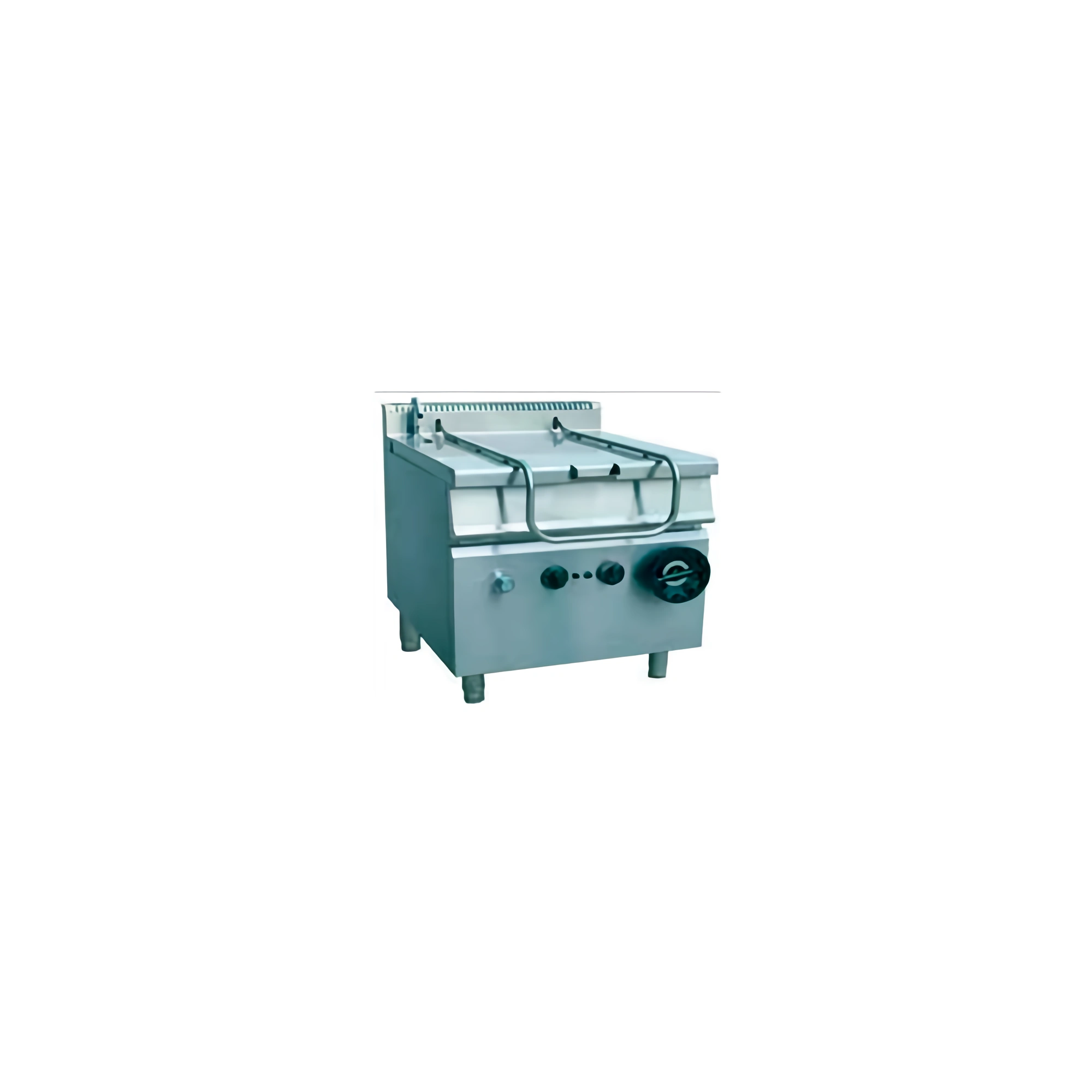

Cooking tank with manual tilt mechanism, rectangular in shape with radiused corners for ease of cleaning; wide drain outlet Pan bottom: 12 mm thick mild steel (F version) Double-skinned lid with drip zone at rear for conveying condensate liquid into the pan, fitted with sturdy AISI 304 stainless steel hinges with spring balancing Satin-finish AISI 304 tubular steel handle with front grip, joined to lid; fixed water tap located on top Heating by means of steel burner with stabilised flame underneath the tank; gas safety valve with thermocouple
Technical Specifications · 720268
- Overall Dimensions
- 800 x 900 x 850 (+120) mm
- Capacity
- 80 L tank (770 × 710 × 200 mm)
- Electrical Power
- Available on request
- Voltage / Frequency
- Available on request
- Gas Heat Input / Consumption
- Gas heat input: 25 kW (85,304 BTU/h) | LPG (G30/G31): 1.78 kg/h | Natural gas (G20): 2.58 m³/h
- Cold-Water Inlet
- Required – 1/2" cold water (filling tap)
- Drain Requirement
- Drain valve – discharges to floor gully (no fixed connection)
- Net Weight
- 124.8 kg
- Origin
- Italy
- Exhaust Requirement
- Required – extraction hood; extract airflow 1,340 m³/h; gas supply interlocked with extract fan
Additional technical information available on request.
At a glance
The Gas Roasting Pan – Series 900 is available in a single configuration. Country of origin: Italy.
Equipping a full kitchen? Request one quote for multiple items →
Buyer questions
- How do I get a quote for the Gas Roasting Pan – Series 900?
- Select the configuration you need and press Request a Quote — the exact item code is attached to your enquiry automatically.
- Where is it made?
- Italy (720268)
